| Potentiometer model： | MR20 series |
| Name： |
MR20 Magnetic Potentiometer |
| Main Specifications: |
Working voltage: 4.5~5.5V; |
| Product Features： |
Long life; High precision; High speed; Low noise |
| Applications： |
Generally used for voltage signal regulation in mobile engineering machinery such as automotive air conditioning, forklifts, shielding doors, barrier gates, and stage lighting. |
ONE、MECHANICAL CHARACTERISTIC
1. Total rotary angle: 360° (Without detent)
2. Rotational torque:20±15 gf.cm
3. Max. speed:300 RPM
TWO、ELECTRICAL CHARACTERISTIC
1. Effective electrical angle: 0~360°;
2. Resolutions: 4096P/12Bit
3. Voltage Consumptron: 5V
4. Output Signal:Single channel 0～100% Vcc
5. Absolute linear error:±0.5%
6. Output deviation of both ends: ﹤1.5% Vcc
Note: In this catalog, if some parameters or drawings are different from the "Approvalsheet", it's subject to the "Approval sheet".

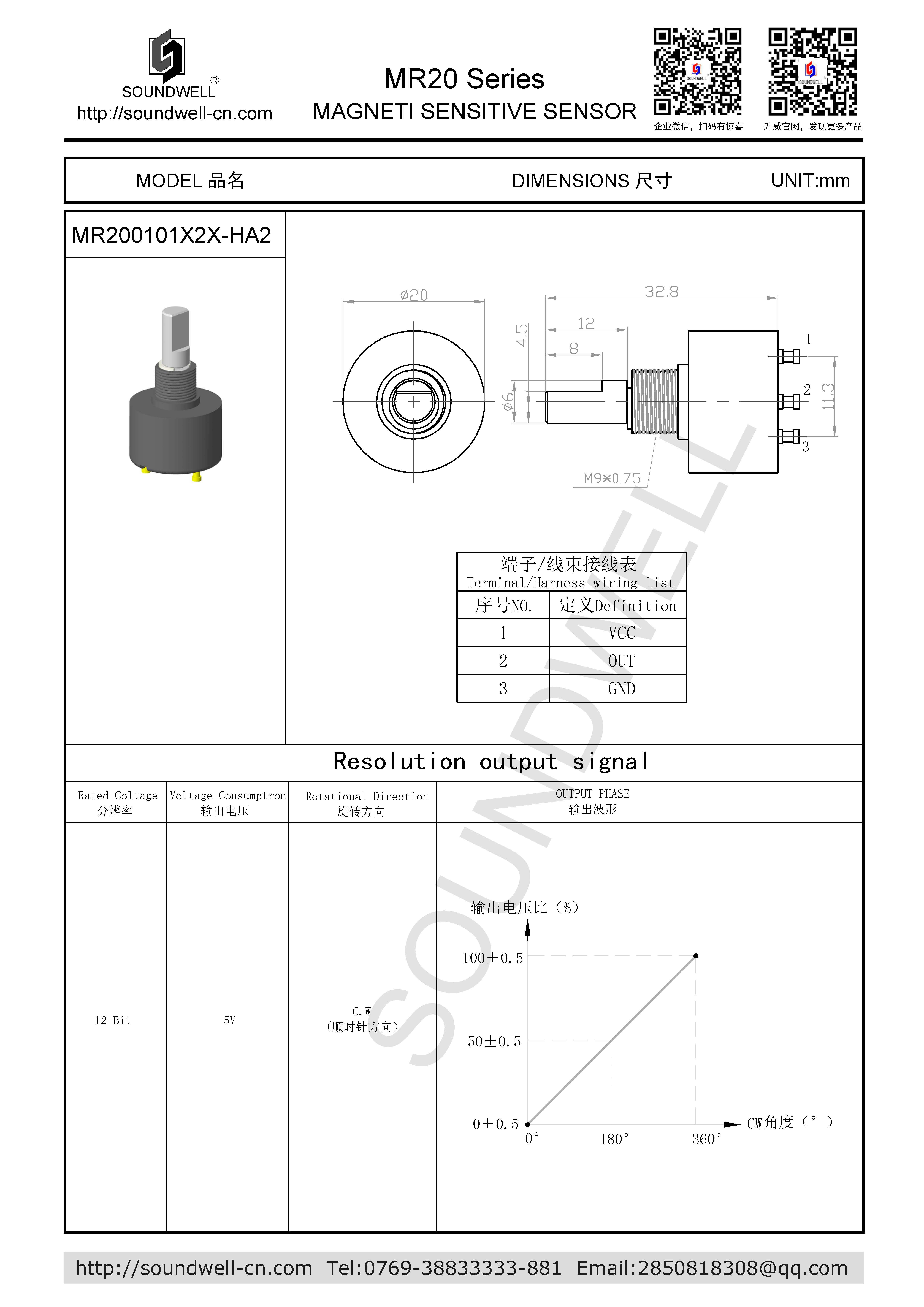

/uploads/images/MR20%20datasheet%20.jpg
